Toro 109-7035

Attn: Wiring harness may need modified

to fit OEM application check S/N

For T adapter OEP 33-159 kits

repair XMC1003 (fm) XMC1002(m)

This item is sold in multiples of: 1

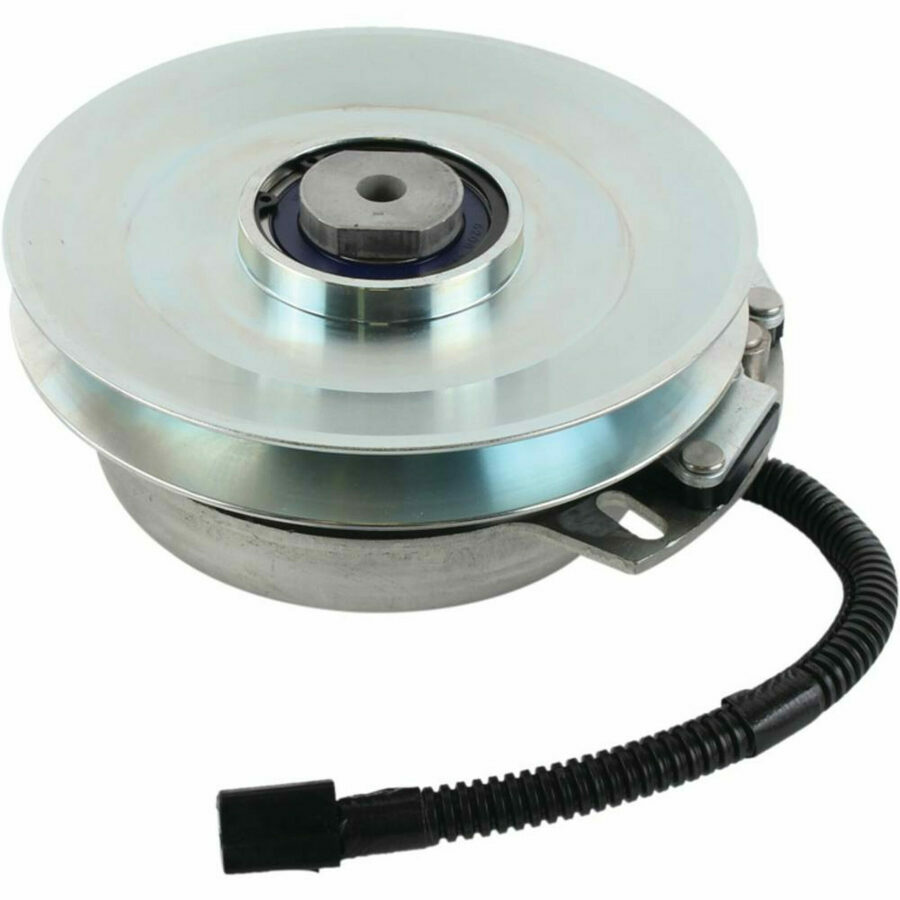

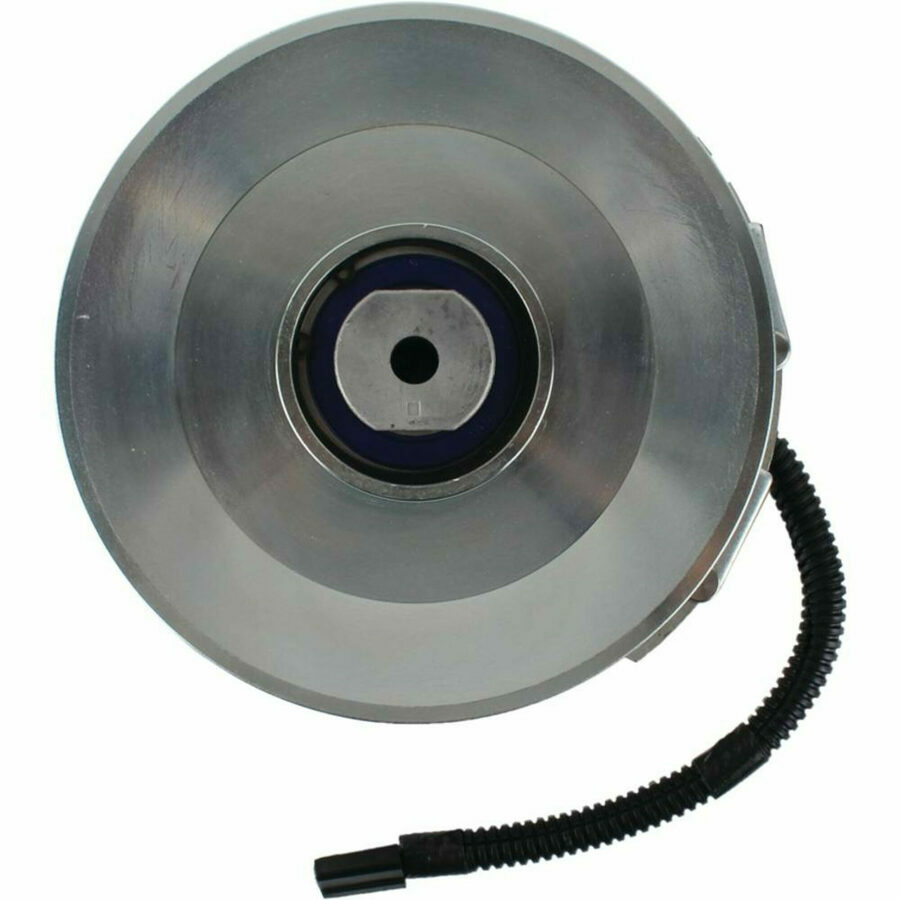

Description: The Xtreme PTO Clutch With machined pulleys, Cool Coil technology, high performance bearings, stainless steel straps and rivets, Xtreme’s Tough Wire Protection System and a replaceable bearing, the Xtreme design is pure performance in every aspect.

Details: Machine Pulleys: Machined pulleys are stronger, quieter and smoother for greater stability and speed

High Temp Bearing: High-temperature bearing grease is rated more than twice what is required

Triple Protected: integrated watertight connection with 3-layer protection conceals wires

Xtreme Cool Coil: Xtreme Cool Coil runs over 20% cooler for an extended service life

Stainless Steel Rivets: Xtreme clutches use tough stainless steel brake rivets for a long and safe service life.

Fits model(s): Exmark Lazer Z CT, Serial No. 370,000 and higher Toro TimeCutter 74401, 74502 and 74601, Serial No. 220000001-240999999; TimeCutter 74701, Serial No. 230000001-230999999; TimeCutter 74602 and 74802, Serial No. 240000001-240999999; TimeCutter 74405, 74801 and 74702, Serial No. 230000001-240999999; TimeCutter 74401, 74501, 74502, 74601 and 74701, Serial No. 210000001-220999999; TimeCutter 74801, Serial No. 220000001-220999999; and Z Master Z400, Serial No. 250000001-280999999

OEM Cross Reference number(s): Toro 109-7035 Exmark 109-7035 Exmark 104-3624 Toro 104-3624

QA_Brand: Xtreme
